Description

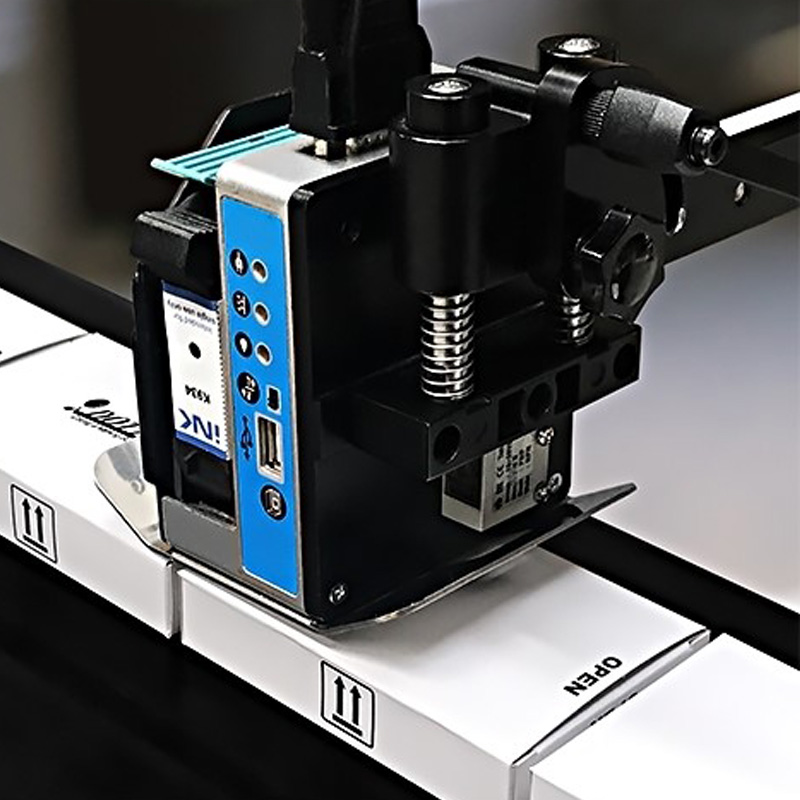

The DJ 45X is an ideal digital alternative to valvejet and CIJprintes. They include two print head controlled capability and are GS1 barcode compliant.
Model | DJ45X |
Technology | Hp TIJ2.5 |
Power requirement | AC110 – 220V, 50/60HZ |
Display | 7” colour LCD with LED backlight |
Operating temperature | 5 ͦ C – 45 ͦ C (41 ͦ F – 112 ͦ F) |
Controller operating system | Linux |
Message storage | Up to 999 messages |
Print head controlled ability | Two hp TIJ2.5 print heads |
Print line | Multiple depends on character size |
Print height | Selectable font size from 1mm to 12.7mm |
Print speed | 60m/min (water ink) 90m/min (solvent ink) |
Max. print length | 1m |
Print resolution | Max. 600dpi x 600dpi / Regular 300dpi x 300dpi |
Ink throw distance | Recommended 6mm |
LED indicators | Ink low, print on/off |
Print capability | Alphanumeric, logos, date/time, shift code, serial number, lot/box number, 2D code, 27 languages characters print |
User interface | WYSIWYG. Multiple languages available ( some may need translation) |
Print head data line | Standard 75cm, maximum 200cm |
Weight | Controller 820g (excludes bracket) Print head 380g (excludes cartridge and bracket) |
Dimensions (L/W/H) | Controller: 205x140x68mm / 8.1×5.5×2.7inch Print head: 130x115x94mm / 5.1×4.5×3.7inch |
Optional | Encoder, bulk ink supply, external low ink alarm |
