Description

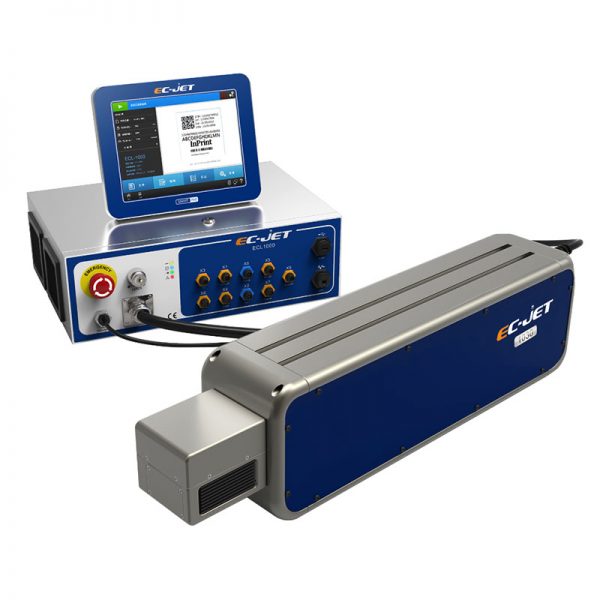

EC-jet CO2 laser printer specifications can be found below. To find out more about this printer and speak to one of our agents please click here
| Model | ECL1130 |
| Laser type | CO2 laser |
| Laser wave length | 10.6um (10.2um, 9.3um optional) |
| Laser power | 30W |
| Marking speed (character/s) | 1300 |
| Linear speed | 300m/min* |
| Marking lines | Unlimited |
| Character height | 0.8mm-within marking area |
| Font type | 26 types of font, supports multi-language and user-defined fonts |
| Barcode type | 1D barcode, 2D barcode |
| Graphic format | BMP/DXF/HPGL/JPEG |
| Text type | Point, line, arc. Rectangle, polygon, ellipse, circle |
| Variate | Serial number, text, date, time, counter, shift code |
| Marking area | 50*50mm, 70*70mm, 110*110mm, 140*140mm, 175*175mm, 210*210mm |
| Focal distance | 75mm, 100mm, 150mm, 200mm, 250mm, 300mm |
| Interface | 10.1” touch screen, QWERTY or AZERTY virtual keyboard, shortcut icon-guided operation, help-online, Multi-language support, support Ethernet remote PC operation and networking |
| Cabinet material | Stainless steel + anodized aluminum |
| Product detection input | NPN/PNP/24V-detector |
| Production speed detection | Shaft encoder or synchronised signal |
| Signal input | Start up, stop, interlocking |
| Signal output | Operation status indication, smoke extraction purifier control, cooling device control, remote control |
| Communication port | RS-232, Ethernet (10/100 Mbit), USB port |
| Power supply | 90-264V AC, 47-63Hz, 1000W/1300W (ECL 1160) |
| Cooling system | Air cooling |
| Operating temperature | 5 – 40 ͦ C, 10%-90% RH, non-condensation |
| Protective grade | IP55, optional IP65 |
| Optional | Infrared beam positioning, infrared beam focusing, network and remote control software (TCP/IP), USB backup storage suite, support set, smoke extraction purifier |
